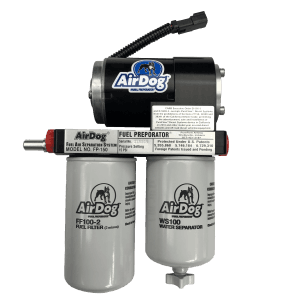

This is the AirDog I FP-150 fuel system for the 2008-2010 Ford Powerstroke 6.4L. This fuel system replaces your factory low pressure frame rail mounted fuel pump. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A 1/2" draw straw is used to pull fuel from the tank. The pressure side connects directly to the factory injection pump feed line on the frame. The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This is a 150GPH (Gallon Per Hour) lift pump system.

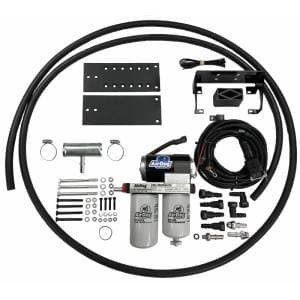

Included:
- 1 AirDog® FP-150-D12
- 1 AirDog® Mounting Bracket 001-3C-0004
- 1 Mounting Hardware Kit, 901-61-0102-PM-F
- 1 Frame Bracket 010-3C-0002 010-3C-0001
- 1 Wiring Harness 5E-2-010
- 1 Return Fuel Filler Tube (with 2 Clamps) 001-4A-1-0150
- 1 Bundle of Plastic Ties 5H-2-1-06/12
- 1 High Flow Suction Tube (For FP-150’s Only) WAP108
- 1 Grommet (For FP-150’s Only) 5J-1-1-04-0001
- 1 Spacer 010-3C-0003-A-P
- 1 20ft of Fuel Line HS20 2 3/8” Male J2044 Quick Connect to 1/2" Push Lock Fitting MQC38
- 1 1/2” male J2044 Quick Connect to 1/2” Push Lock Fitting MQC12
- 3 1/2” Straight Hose Quick Connect Fitting FQC12S
- 2 1/2" 90° Hose Quick Connect Fitting FQC1290
- 1 Customer Service O-ring Replacement Kit 901-05-0101
- 2 1/2” Male J2004 Quick Connect x 3/4” UNF 08J2044-3/4UNF
