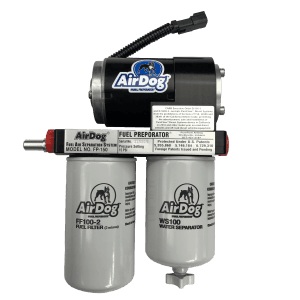

This is the AirDog I FP-100 fuel system for the 1994-1998 Dodge Ram with the P-Pump 12V Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. This system utilizes the factory suction port in the fuel module for suction and connects directly to the P-Pump, bypassing the factory fuel filter housing and factory fuel pump. Lines and fittings are included to connect the injection pump return, which would normally recirculate through the factory fuel filter housing, to the injector return line and is returned to the tank. The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This is a 100GPH (Gallon Per Hour) lift pump system.

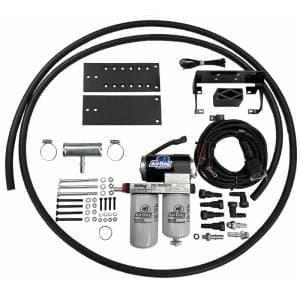

Included:
- 1 AirDog® FP-100-D12
- 1 AirDog® Mounting Bracket 001-3C-0004
- 1 Mounting Bracket Hardware Kit, Includes: 901-61-0102-PM
- 1 Frame Bracket Set 010-3C-0002 010-3C-0001
- 1 Wiring Harness 5E-2-010
- 1 Return Fuel Filler Tube (with 2 Clamps) 001-4A-1-0175
- 1 Bundle of Plastic Ties 5H-2-1-06/12
- 1 High Flow Suction Tube (For FP-150’s Only) WAP108
- 1 Grommet (For FP-150’s Only) 5J-1-1-04-0001
- 1 Spacer 010-3C-0003-A-P
- 1 20ft of Hose HS20
- 3 or 4 1/2” Straight Hose Quick Connect End (3 for FP-100 Only) (4 For FP-150 Only) FQC12S
- 2 1/2" 90° Hose Quick Connect End FQC1290
- 1 3/8” Straight Hose Quick Connect Fitting (For FP-100’s Only) QC38S
- 1 12mm X ½” male SAE J2044 Fitting WAP103
- 1 Seal Washer (Assembles on WAP 102) 1P-5-ES
- 1 Customer Service Oring Replacement Kit 901-05-0101
- 2 1/2” Male SAE J2004 Quick Connect x 3/4” UNF 08J2044-3/4UNF
- 1 “P-7100” Pump Flexible Return Line 4C-1-02-05-001
- 2 5/16” Push Lock X ¼” Male NPT 4A-1-18-05-04
- 1 Injection Pump Return Tee 001-4A-1-0008
