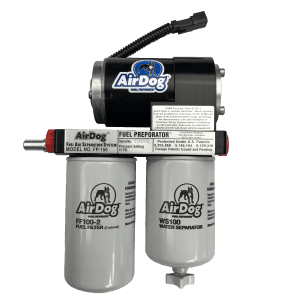

This is the AirDog I FP-150 fuel system for the 1998.5-2004 VP44 and early CP3 Cummins. This system mounts to the frame rail using the supplied sandwich plate mounting system. A 1/2" draw straw is used to pull fuel from the tank. The pressure side connects directly to the VP44 or CP3 injection pump, bypassing the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This is a 150GPH (Gallon Per Hour) fuel system.

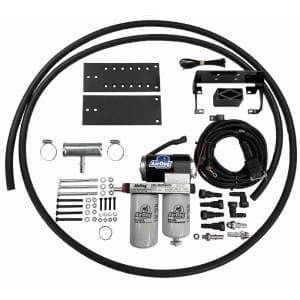

Included:
- 1 AirDog® FP-150-D12
- 1 AirDog® Mounting Bracket 001-3C-0004
- 1 Mounting Bracket Hardware Kit, Includes: 901-61-0102-PM
- 1 Frame Bracket Set 010-3C-0002 010-3C-0001
- 1 Wiring Harness 5E-2-011
- 1 Return Fuel Filler Tube (with 2 Clamps) 001-4A-1-0150
- 1 Bundle of Plastic Ties 5H-2-1-06/12
- 1 High Flow Suction Tube (For FP-150’s and FP-100 with in tank pump Only) WAP108
- 1 Grommet (For FP-150’s and FP-100 with in tank pump Only) 5J-1-1-04-0001
- 1 Spacer 010-3C-0003-A-P
- 1 20ft of Hose HS20
- 3 or 4 1/2” Straight Hose Quick Connect End (3 for FP-100 W/O In Tank Pump Only) (4 For FP-150 and FP-100 with In Tank Pump Only) FQC12S
- 2 1/2" 90° Hose Quick Connect End FQC1290
- 1 3/8” Straight Hose Quick Connect Fitting (For FP-100’s W/O In Tank Pump Only) FQC38S
- 1 12mm X ½” male SAE J2044 Fitting WAP102
- 1 Seal Washer (Assembles on WAP 102) 1P-5-DS
- 1 Customer Service O-ring Replacement Kit 901-05-0101
- 2 1/2” Male SAE J2004 Quick Connect x 3/4” UNF 08J2044-3/4UNF
- 1 17PSI Spring 1V-1-00003
