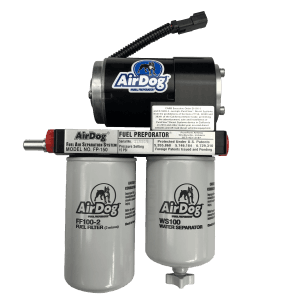

This is the AirDog I FP-100 fuel system for the 2001-2010 Chevy/GMC 6.5L Diesel. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system and connects to the factory fuel lines for suction and feed to the injection pump. This is a 100GPH (Gallon Per Hour) lift pump system.

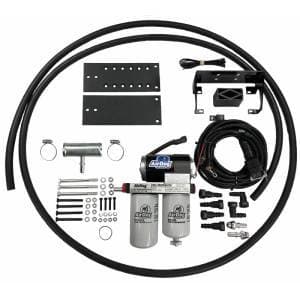

Included:
- 1 FP-100
- 1 AirDog® Mounting Bracket 001-3C-0004
- 1 Mounting Hardware Kit 901-61-0102-PM-C
- 1 Frame Bracket 010-3C-0002 010-3C-0001
- 1 Wiring Harness 5E-2-010
- 1 Bundle of Plastic Ties 5H-2-1-06/12
- 1 Return Fuel Filler Tube (with 2 Clamps) 001-4A-1-0200
- 1 High Flow Suction Tube (For FP-150’s Only) WAP108
- 1 Grommet (For FP-150’s Only) 5J-1-1-04-0001
- 1 Spacer 010-3C-0003-A-P
- 1 20ft of Fuel Hose HS20
- 5 1/2” Straight Hose Quick Connect End FQC12S
- 1 1/2" 90° Hose Quick Connect End FQC1290
- 1 Customer Service Oring Replacement Kit 901-05-0101
- 2 1/2” Male J2004 Quick Connect x 3/4” UNF 08J2044-3/4UNF
