AirDog LML FP-100 Kit | A4SPBC186 | 2011-2014 Chevy/GMC Duramax

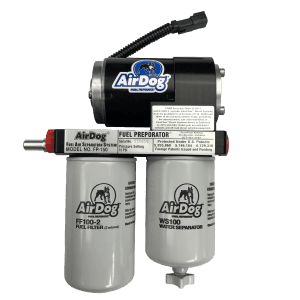

This is the AirDog I FP-100 fuel system for the 2011-2014 Chevy/GMC 6.5L Diesel. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system and connects to the factory fuel lines for suction and feed to the injection pump. This is a 100GPH (Gallon Per Hour) lift pump system.

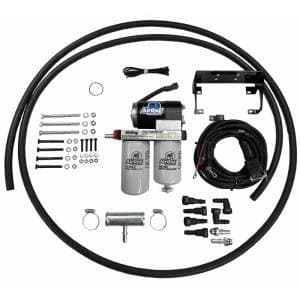

Included:

• 1 FP-100


• 1 AirDog® Mounting Bracket 001-3C-0004


• 1 Mounting Hardware Kit 901-61-0102-PM-C-12


• 1 Wiring Harness 5E-2-010


• 1 Bundle of Plastic Ties 5H-2-1-06/12


• 1 High Flow Suction Tube (For FP-150’s Only) WAP108


• 1 Grommet (For FP-150’s Only) 5J-1-1-04-0001


• 1 20ft of Fuel Line HS20


• 2 or 3 1/2” Straight Hose Quick Connect End (2 for FP-100 Only) (3 For FP-150 Only) FQC12S


• 3 1/2" 90° Hose Quick Connect End FQC1290


• 1 11.8mm Straight Hose Quick Connect End (For FP-100 Only) FQC118S


• 3 Customer Service O-ring Replacement Kit 901-05-0100


• 2 1/2” Male J2004 Quick Connect x 3/4” UNF 08J2044-3/4UNF


• 1 Return Fuel Filler Tube (with 2 Clamps) 001-4A-1-0150
